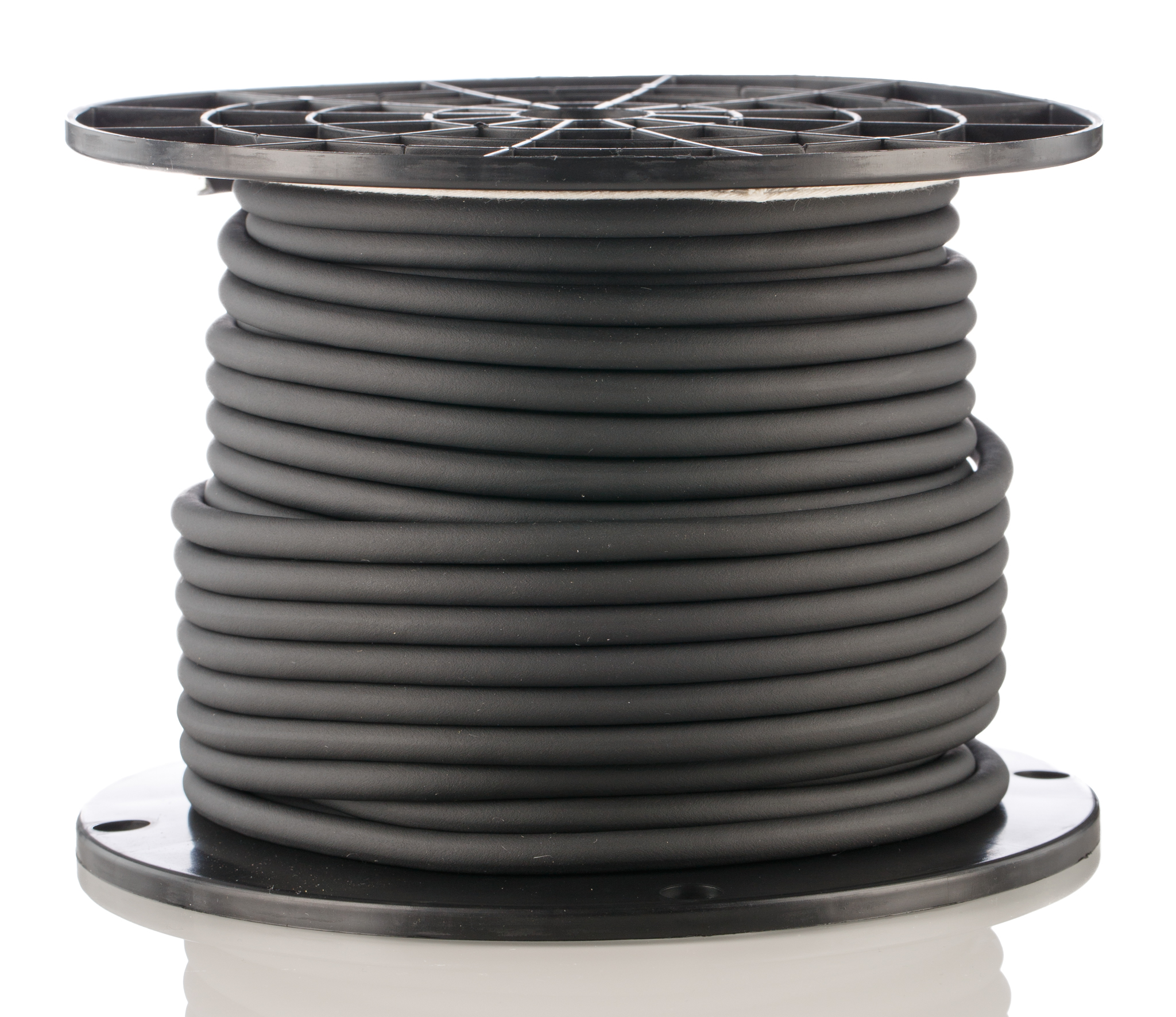

Belden1192A Series 4 Core Microphone Cable, 0.2 mm² CSA Screened, 6.22mm od, 30m, Black

Belden 1192A Series 4 Core Microphone Cable, 0.2 mm² CSA Screened, 6.22mm od, 30m, Black

Manufacturer:
Manufacturer Part No:
1192A B59100
Enrgtech Part No:
ET13848200
Warranty:
Manufacturer
KWD 123.29
Checking for live stock
Audio Cable Type:
Microphone Cable
Number of Cores:
4
Cross Sectional Area:
0.2 mm²
Screened/Unscreened:
Screened
Insulation Material:
PE
Outer Diameter:
330µF
Length:
30m
Minimum Operating Temperature:
-30°C
Maximum Operating Temperature:
+75°C
Sheath Colour:
Black
American Wire Gauge:
24 AWG
Size of Strands:
42x40
Capacitance Core To Core:
128.576pF/m
Capacitance Core To Screen:
188.272pF/m
Number of Strands:
42
Shielded/Unshielded:
Shielded
Characteristic Impedance:
40 Ω
Sheath Material:
Polyvinyl Chloride PVC
Screen Type:
Tinned Copper Braid
Conductor Resistance:
87.270344 Ω/km
Current Rating:
2.9 A
Series:
1192A
Cable Shape:
Multicore
Conductor Strand Type:
Stranded
Core Strands:
42/40
Conductor Material:
Copper
Voltage Rating:
100 V
pdf icon
0900766b8139e990.pdf(datasheets)
pdf icon
A700000007359369.pdf(datasheets)
pdf icon
A700000008642747.pdf(datasheets)
