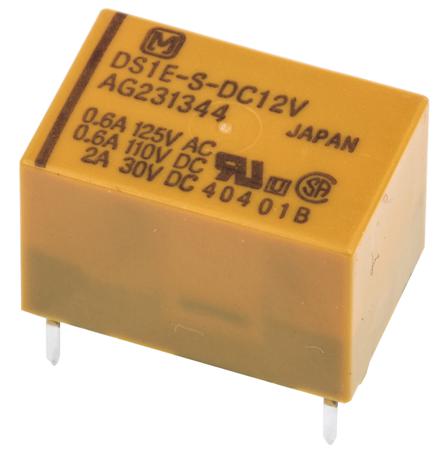

ds1e-s-dc12v Panasonic PCB Mount Signal Relay, 12V dc Coil, 3A Switching Current, SPST
ds1e-s-dc12v Panasonic PCB Mount Signal Relay, 12V dc Coil, 3A Switching Current, SPST
ds1e-s-dc12v Panasonic PCB Mount Signal Relay, 12V dc Coil, 3A Switching Current, SPST

Panasonic PCB Mount Signal Relay, 12V dc Coil, 3A Switching Current, SPST

Panasonic PCB Mount Signal Relay, 12V dc Coil, 3A Switching Current, SPST

Manufacturer:
Panasonic
Manufacturer Part No:
DS1E-S-DC12V
Enrgtech Part No:
ET13836735
Warranty:
Manufacturer
KWD 2.29 KWD 2.29
Checking for live stock
Coil Voltage:
12V dc
Contact Configuration:
SPST
Mounting Type:
PCB Mount
Maximum Switching Current DC:
3 A
Maximum Switching Voltage AC:
250V ac
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Series:
DS
Length:
20.2mm
Latching:
No
Depth:
9.8mm
Height:
9.4mm
Dimensions:
20 x 9.9 x 9.9mm
Terminal Type:
PCB Pin
Switching Current:
3A
Number of Poles:
1
Isolation Coil To Contact:
1.5kV rms
Life:
100000000 (Mechanical) cycles, 500000 (Electrical) cycles
Electrical Life:
5000000 Operation Cycles
Coil Resistance:
720Ω
Operating Temperature Range:
-40 → +70°C
Features:
Suitable For Use In Difficult Environments, Gold Clad Twin Contacts Ensure High Reliability, Can Be Used With Automatic Solder And Automatic Wash Systems
Contact Material:
Gold Plated
Maximum Operating Temperature:
+70°C
Coil Power:
200mW
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
125VA
pdf icon
0900766b81061f6a.pdf(datasheets)
Explore signal relays for reliable low-voltage control. Enrgtech offers compact PCB relays designed for precision switching in electronic signal circuits.
